GNSSDO

GNSSDO

GNSS Disciplined Oscillators (GNSSDO) with Excellent Holdover Stability

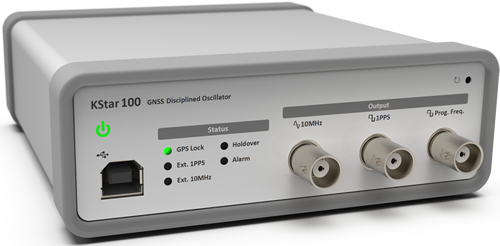

product K-Star 100 All-in-one ultra-stable OCXO based frequency and time standard Synchronize to built-in multi-system GNSS receiver.
Frequency accuracy ≤ ±1E-12 at GNSS locked.
Holdover stability ≤ ±1.5us over 24 hours in 20˚C temperature variation.
Dimension 158 x 190 x 53 mm.
question

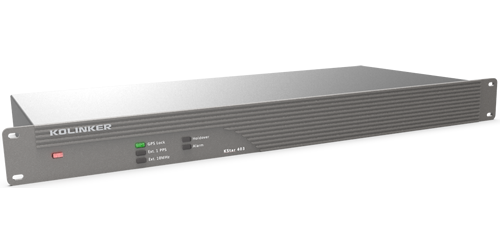

product K-Star-100U Rack-mount ultra-stable OCXO based frequency and time standard Synchronize to built-in multi-system GNSS receiver.
Frequency accuracy ≤ ±1E-12 at GNSS locked.
Holdover stability ≤ ±1.5us over 24 hours in 20˚C temperature variation.
Dimension in 1U rack-mount.
question

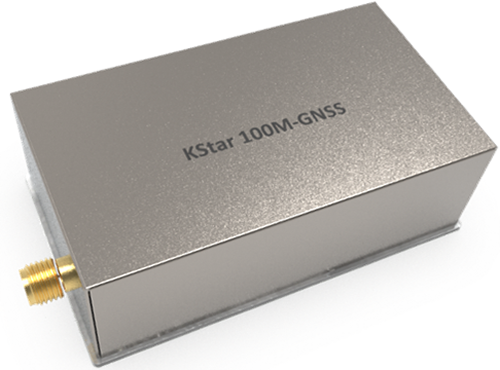

product K-Star 100M-GNSS Ultra-stable OCXO based.
Ready for system integration in modular form factor.
Synchronize to built-in multi-system GNSS receiver.
Frequency accuracy ≤ ±1E-12 at GNSS locked.
Holdover stability ≤ ±1.5us over 24 hours in 20˚C temperature variation.
Options available to programmable frequency output.
Dimension 95 x 46 x 20 mm.
question

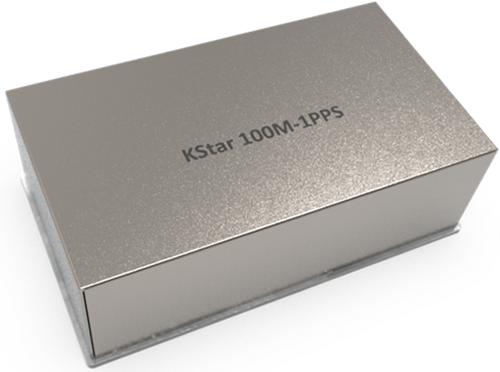

product K-Star 100M-1PPS Ultra-stable OCXO based.
Flexible connection to any GNSS receiver by 1PPS input.
Disciplined OCXO which synchronize to 1PPS external input.
Frequency accuracy ≤ ±1E-12 at GNSS locked.
Holdover stability ≤ ±1.5us over 24 hours in 20˚C temperature variation.
Dimension 75 x 46 x 20 mm.
question

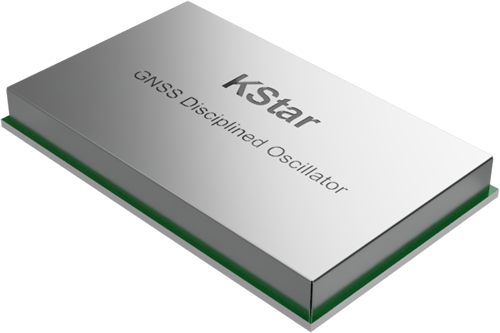

product K-Star-50M-GNSS TCXO based.
Ready for system integration in modular form factor.
Synchronize to built-in multi-system GNSS receiver.
Frequency accuracy ≤ ±1E-12 at GNSS locked.
Customized holdover stability upon user request.
Options available to programmable frequency output.
Dimension 75 x 46 x 8 mm.
question

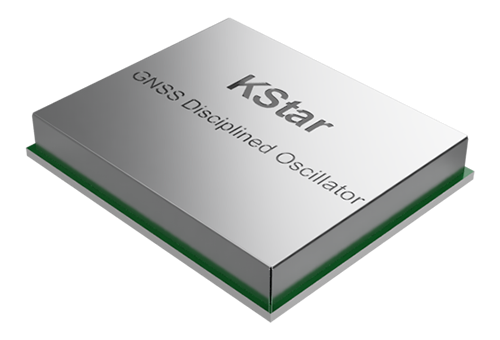

product K-Star-50M-1PPS TCXO based.
Flexible connection to any GNSS receiver by 1PPS input.
Disciplined TCXO which synchronize to 1PPS external input.
Frequency accuracy ≤ ±1E-12 at GNSS locked.
Customized holdover stability upon user request.
Dimension 55 x 46 x 8 mm.
question
Options available for different combinations of holdover stability requirements such as 0.1us / 0.5us / 1us / 1.5us / 8us over 1 / 2 / 4 / 8 / 24 hours in 5˚C / 10˚C / 20˚C temperature variations. Please contact our sales representatives for details.
